Cd1Te1
MatHub2d-1753-Cd1Te1
| Property |
Value |
| Space group |
(123, 'P4/mmm') |
| Crystal system |
square |
| Magnetic |
No |
| Band gap (PBE) (eV) |
0.00 |
| Free energy (eV) |
-3.576 |
| Free energy / atom (eV) |
-1.788 |
Lattice Parameters (basic)
| a, b, c (Å): | 4.097 | 4.097 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
Lattice Parameters (computed)
| a, b, c (Å): | 4.111 | 4.111 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-4.163 eV |

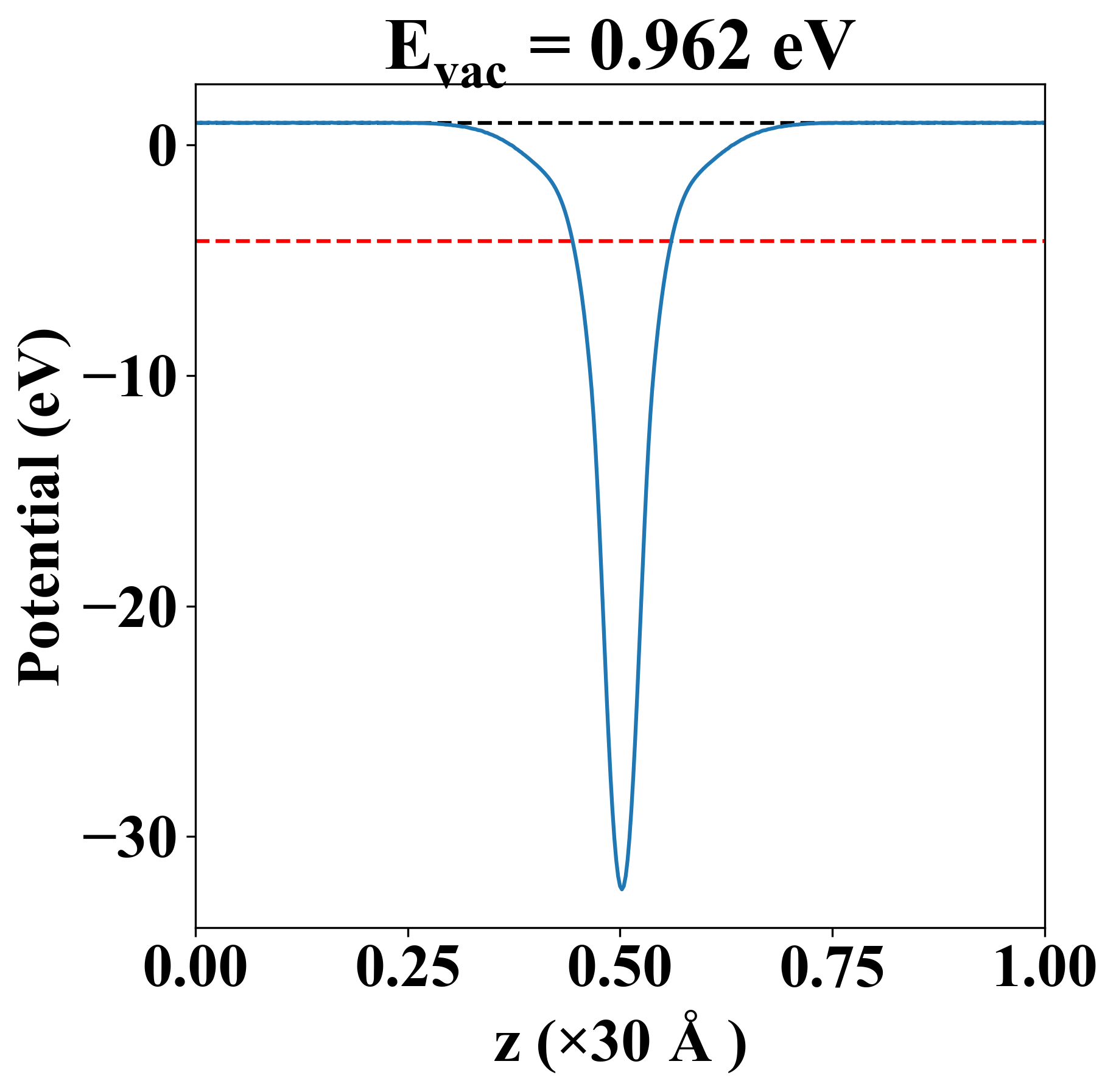

| Vacuum level |
0.962 eV |
| VBM |
-4.169 eV |
| CBM |
-4.149 eV |
| Work function |
5.125 eV |
| Direct gap |
No |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-4.163 eV |
| Vacuum level |
0.962 eV |
| VBM |
-4.169 eV |
| CBM |
-4.149 eV |
| Work function |
5.125 eV |
| Cij (N/m) |
xx |
yy |
xy |
| xx |
38.766 |
23.218 |
0.000 |
| yy |
23.218 |
38.766 |
0.000 |
| xy |
0.000 |
0.000 |
16.078 |
| Phonon mode at Γ point (THz) |
| -0.034 |
| -0.002 |
| -0.002 |
| 0.711 |
| 3.935 |
| 3.935 |
| Property |
Value |
| from where |
c2db-1489 |
