I2O2Pt2
MatHub2d-1546-I2O2Pt2
| Property |
Value |
| Space group |
(59, 'Pmmn') |
| Crystal system |
rectangular |
| Magnetic |
Yes |
| Band gap (PBE) (eV) |
0.00 |
| Free energy (eV) |
-21.411 |
| Free energy / atom (eV) |
-3.569 |
Lattice Parameters (basic)
| a, b, c (Å): | 3.680 | 4.095 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
Lattice Parameters (computed)
| a, b, c (Å): | 3.669 | 4.080 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-1.639 eV |

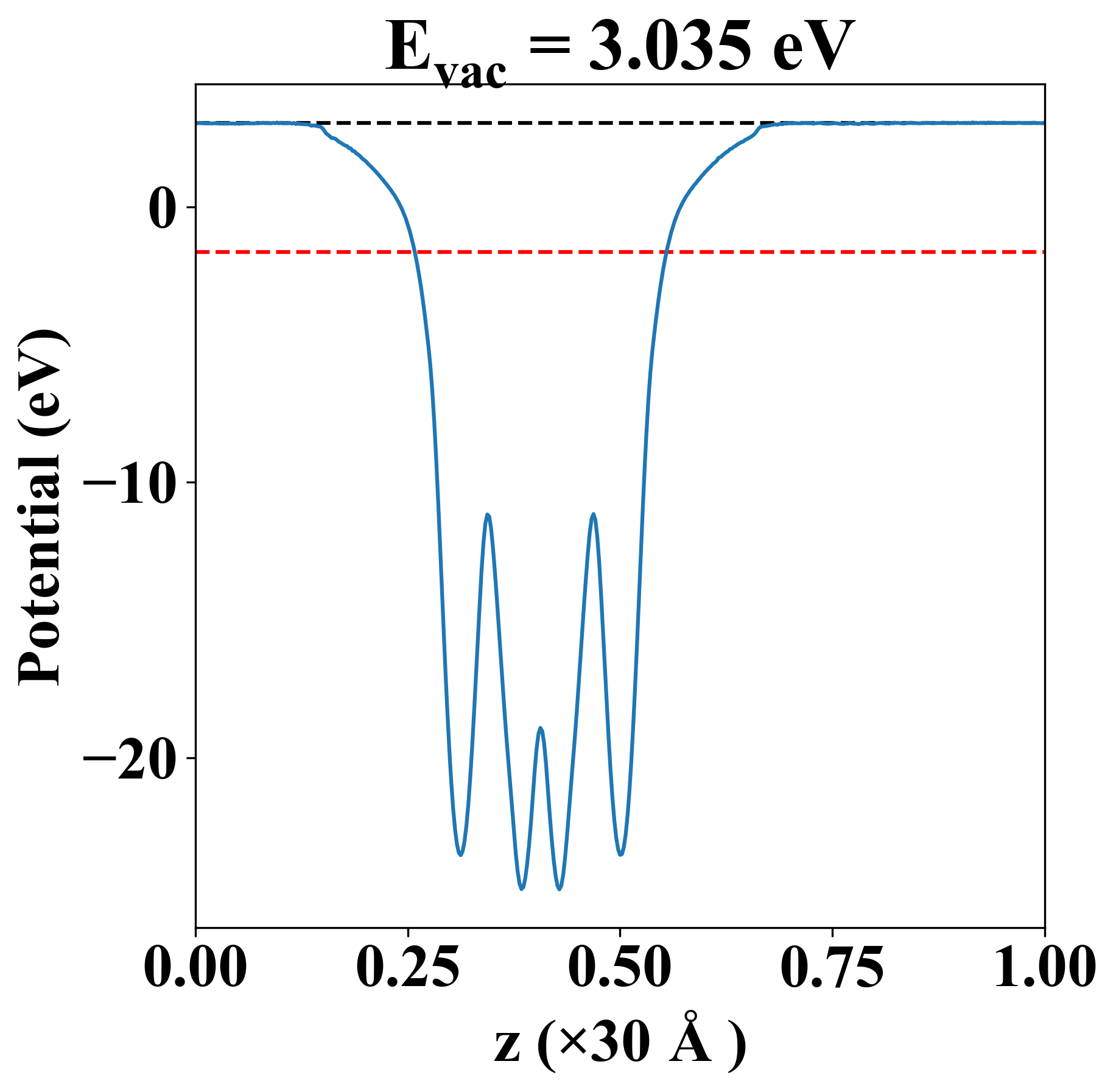

| Vacuum level |
3.035 eV |
| VBM |
-1.639 eV |
| CBM |
-1.637 eV |
| Work function |
4.673 eV |
| Direct gap |
No |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-1.639 eV |
| Vacuum level |
3.035 eV |
| VBM |
-1.639 eV |
| CBM |
-1.637 eV |
| Work function |
4.673 eV |
| Cij (N/m) |
xx |
yy |
xy |
| xx |
63.252 |
30.303 |
0.000 |
| yy |
30.303 |
101.719 |
0.000 |
| xy |
0.000 |
0.000 |
12.578 |
| Phonon mode at Γ point (THz) |
| Property |
Value |
| from where |
c2db-310 |
