Cl2Mn2S2
MatHub2d-1345-Cl2Mn2S2
| Property |
Value |
| Space group |
(59, 'Pmmn') |
| Crystal system |
rectangular |
| Magnetic |
Yes |
| Band gap (PBE) (eV) |
0.00 |
| Free energy (eV) |
-30.849 |
| Free energy / atom (eV) |
-5.141 |
Lattice Parameters (basic)
| a, b, c (Å): | 3.404 | 4.985 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
Lattice Parameters (computed)
| a, b, c (Å): | 3.538 | 4.953 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-4.200 eV |

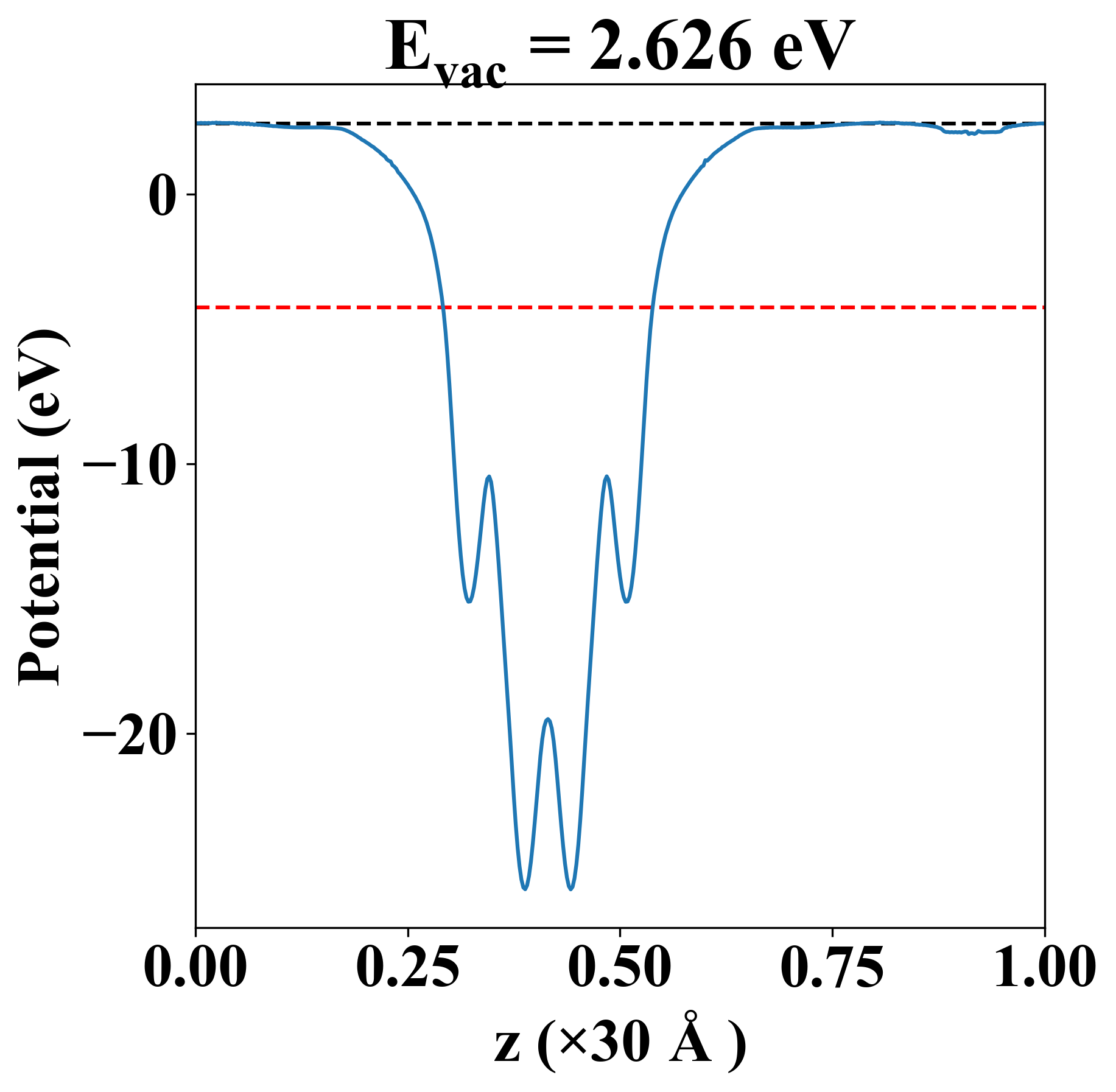

| Vacuum level |
2.626 eV |
| VBM |
-4.202 eV |
| CBM |
-4.199 eV |
| Work function |
6.825 eV |
| Direct gap |
No |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-4.200 eV |
| Vacuum level |
2.626 eV |
| VBM |
-4.202 eV |
| CBM |
-4.199 eV |
| Work function |
6.825 eV |
| Cij (N/m) |
xx |
yy |
xy |
| xx |
49.215 |
10.311 |
0.000 |
| yy |
10.311 |
18.361 |
0.000 |
| xy |
0.000 |
0.000 |
21.922 |
| Phonon mode at Γ point (THz) |
| Property |
Value |
| from where |
c2db-208 |
