Cl2Ga2N2
MatHub2d-1319-Cl2Ga2N2
| Property |
Value |
| Space group |
(59, 'Pmmn') |
| Crystal system |
rectangular |
| Magnetic |
No |
| Band gap (PBE) (eV) |
0.00 |
| Free energy (eV) |
-27.117 |
| Free energy / atom (eV) |
-4.519 |
Lattice Parameters (basic)
| a, b, c (Å): | 3.305 | 3.719 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
Lattice Parameters (computed)
| a, b, c (Å): | 3.239 | 3.639 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-4.004 eV |

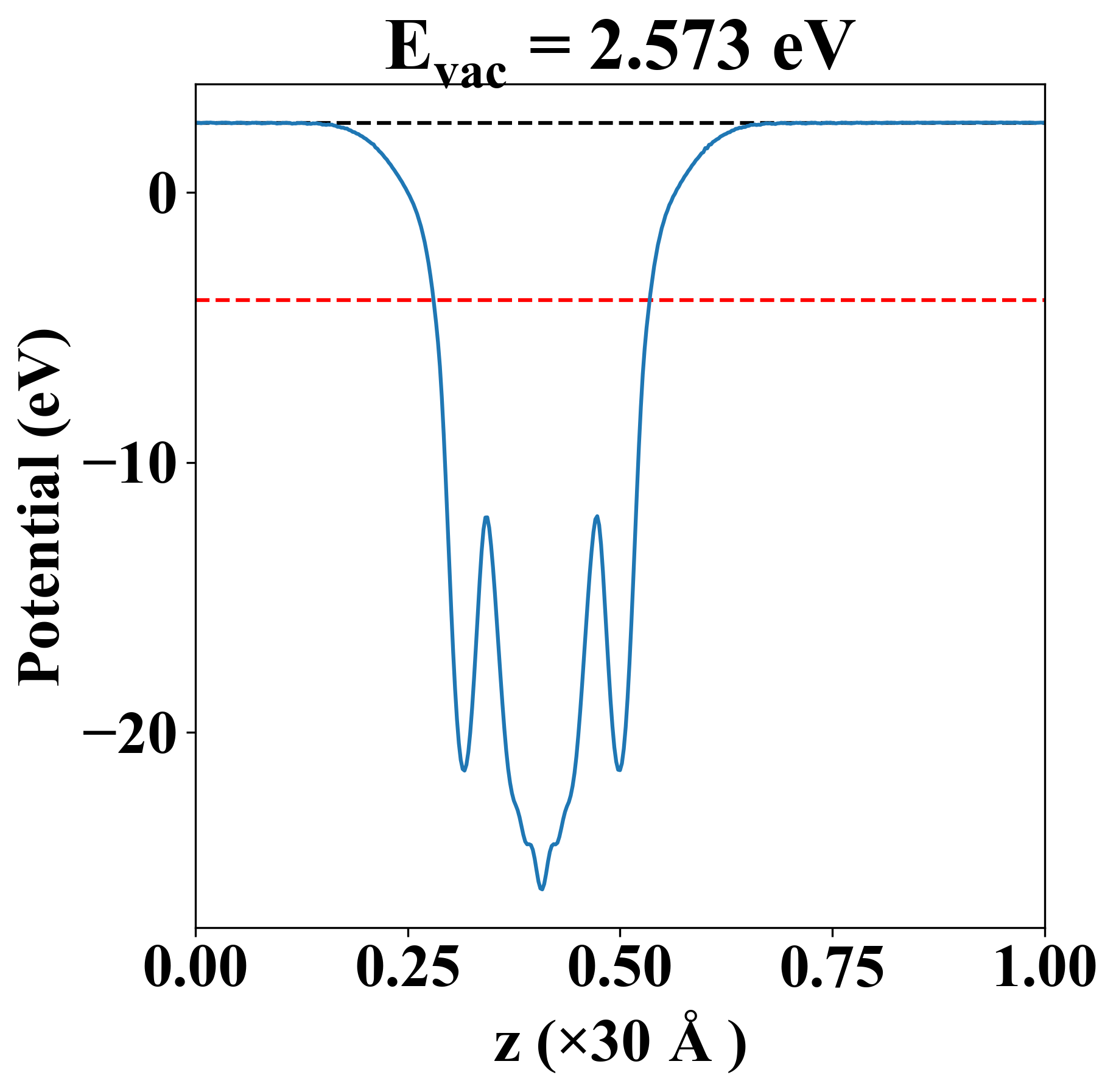

| Vacuum level |
2.573 eV |
| VBM |
-4.005 eV |
| CBM |
-4.002 eV |
| Work function |
6.576 eV |
| Direct gap |
No |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-4.004 eV |
| Vacuum level |
2.573 eV |
| VBM |
-4.005 eV |
| CBM |
-4.002 eV |
| Work function |
6.576 eV |
| Cij (N/m) |
xx |
yy |
xy |
| xx |
154.053 |
56.810 |
0.000 |
| yy |
56.810 |
109.275 |
0.000 |
| xy |
0.000 |
0.000 |
-14.900 |
| Phonon mode at Γ point (THz) |
| Property |
Value |
| from where |
c2db-136 |
