Br2O2Ta2
MatHub2d-1246-Br2O2Ta2
| Property |
Value |
| Space group |
(59, 'Pmmn') |
| Crystal system |
rectangular |
| Magnetic |
|
| Band gap (PBE) (eV) |
0.00 |
| Free energy (eV) |
-42.191 |
| Free energy / atom (eV) |
-7.032 |
Lattice Parameters (basic)
| a, b, c (Å): | 3.246 | 4.133 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
Lattice Parameters (computed)
| a, b, c (Å): | 3.192 | 4.143 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-1.891 eV |

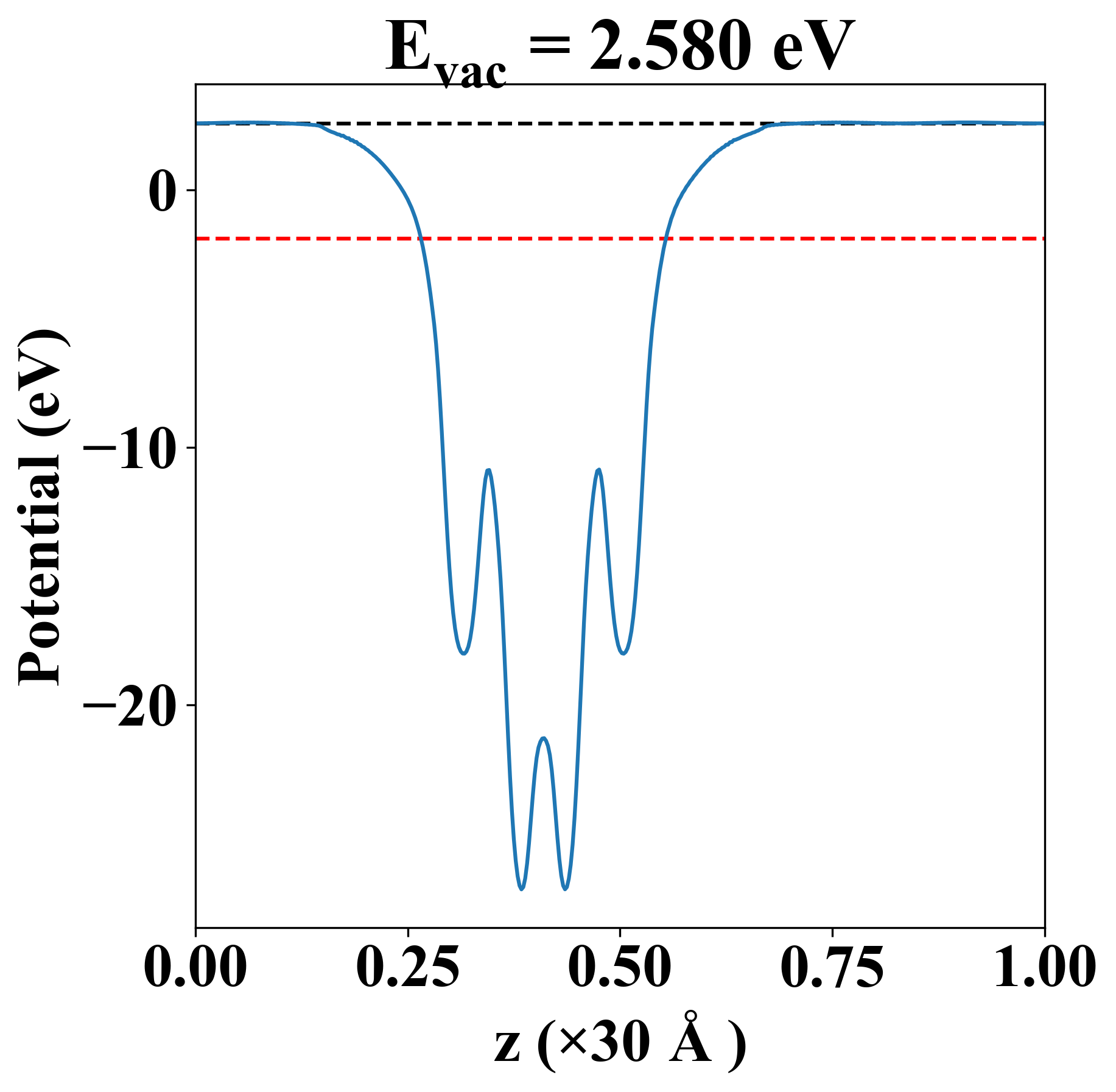

| Vacuum level |
2.580 eV |
| VBM |
-1.893 eV |
| CBM |
-1.891 eV |
| Work function |
4.471 eV |
| Direct gap |
No |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-1.891 eV |
| Vacuum level |
2.580 eV |
| VBM |
-1.893 eV |
| CBM |
-1.891 eV |
| Work function |
4.471 eV |
| Cij (N/m) |
xx |
yy |
xy |
| xx |
89.537 |
-13.207 |
0.000 |
| yy |
-13.207 |
295.096 |
0.000 |
| xy |
0.000 |
0.000 |
21.442 |
| Phonon mode at Γ point (THz) |
| Property |
Value |
| from where |
c2db-364 |
