Al2Br2N2
MatHub2d-1112-Al2Br2N2
| Property |
Value |
| Space group |
(59, 'Pmmn') |
| Crystal system |
rectangular |
| Magnetic |
No |
| Band gap (PBE) (eV) |
0.00 |
| Free energy (eV) |
-30.356 |
| Free energy / atom (eV) |
-5.059 |
Lattice Parameters (basic)
| a, b, c (Å): | 3.339 | 3.577 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
Lattice Parameters (computed)
| a, b, c (Å): | 3.335 | 3.580 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-3.733 eV |

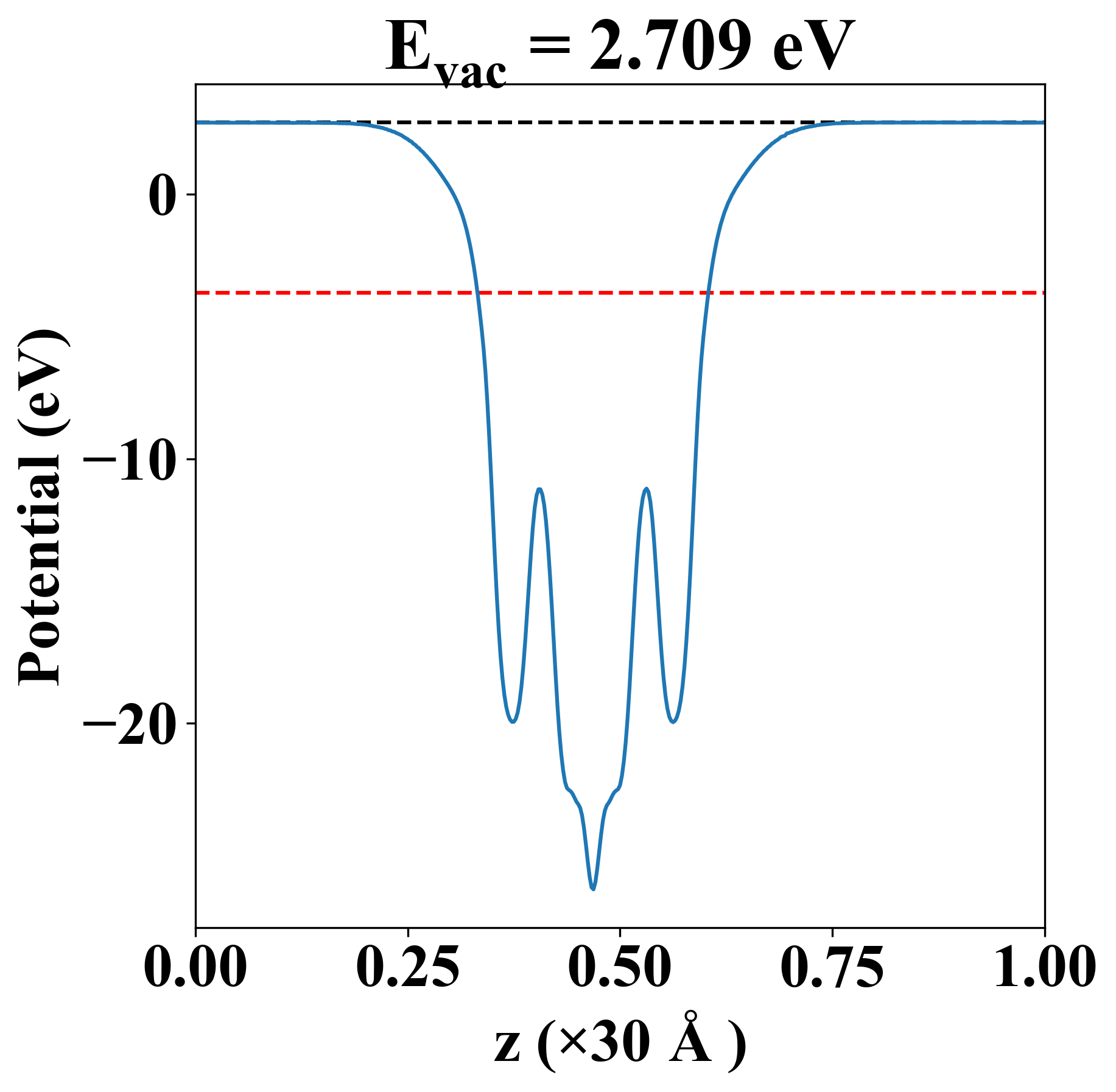

| Vacuum level |
2.709 eV |
| VBM |
-3.740 eV |
| CBM |
-3.730 eV |
| Work function |
6.442 eV |
| Direct gap |
No |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-3.733 eV |
| Vacuum level |
2.709 eV |
| VBM |
-3.740 eV |
| CBM |
-3.730 eV |
| Work function |
6.442 eV |
| Cij (N/m) |
xx |
yy |
xy |
| xx |
137.761 |
55.992 |
0.000 |
| yy |
55.992 |
122.497 |
0.000 |
| xy |
0.000 |
0.000 |
-24.576 |
| Phonon mode at Γ point (THz) |
| Property |
Value |
| from where |
c2db-14 |
