Ag2I2O2
MatHub2d-1108-Ag2I2O2
| Property |
Value |
| Space group |
(59, 'Pmmn') |
| Crystal system |
rectangular |
| Magnetic |
No |
| Band gap (PBE) (eV) |
0.00 |
| Free energy (eV) |
-13.696 |
| Free energy / atom (eV) |
-2.283 |
Lattice Parameters (basic)
| a, b, c (Å): | 3.576 | 4.162 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
Lattice Parameters (computed)
| a, b, c (Å): | 3.199 | 4.055 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-2.465 eV |

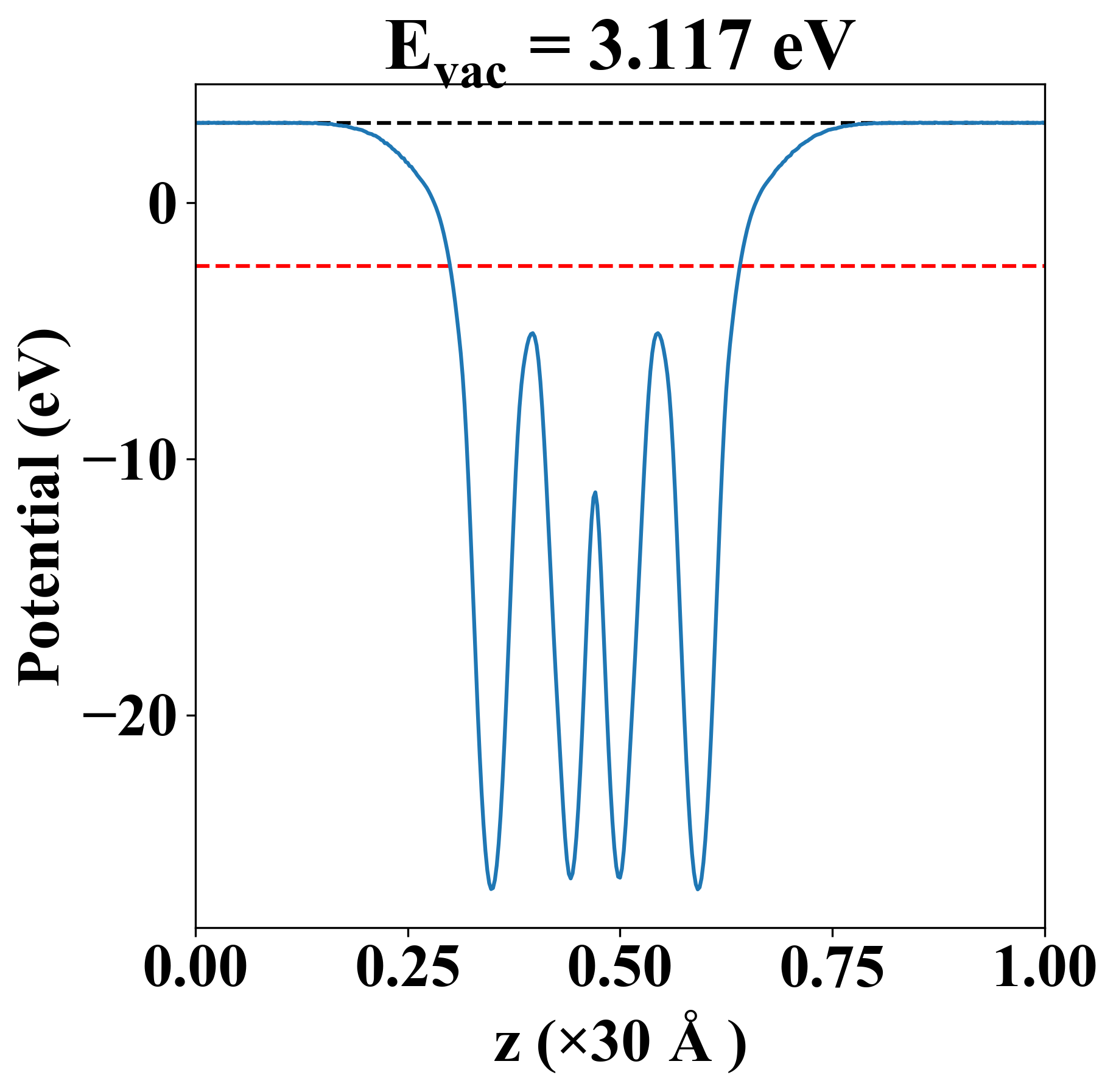

| Vacuum level |
3.117 eV |
| VBM |
-2.466 eV |
| CBM |
-2.462 eV |
| Work function |
5.582 eV |
| Direct gap |
No |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-2.465 eV |
| Vacuum level |
3.117 eV |
| VBM |
-2.466 eV |
| CBM |
-2.462 eV |
| Work function |
5.582 eV |
| Cij (N/m) |
xx |
yy |
xy |
| xx |
-198.954 |
124.128 |
0.000 |
| yy |
124.128 |
30.744 |
0.000 |
| xy |
0.000 |
0.000 |
10.111 |
| Phonon mode at Γ point (THz) |
| Property |
Value |
| from where |
c2db-11 |
