Br2Nb1
MatHub2d-168-Br2Nb1
| Property |
Value |
| Space group |
(164, 'P-3m1') |
| Crystal system |
hexagonal |
| Magnetic |
Yes |
| Band gap (PBE) (eV) |
0.00 |
| Free energy (eV) |
-13.519 |
| Free energy / atom (eV) |
-4.506 |
Lattice Parameters (basic)
| a, b, c (Å): | 3.379 | 3.379 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 120.000 |
Lattice Parameters (computed)
| a, b, c (Å): | 3.381 | 3.381 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 120.000 |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-1.479 eV |

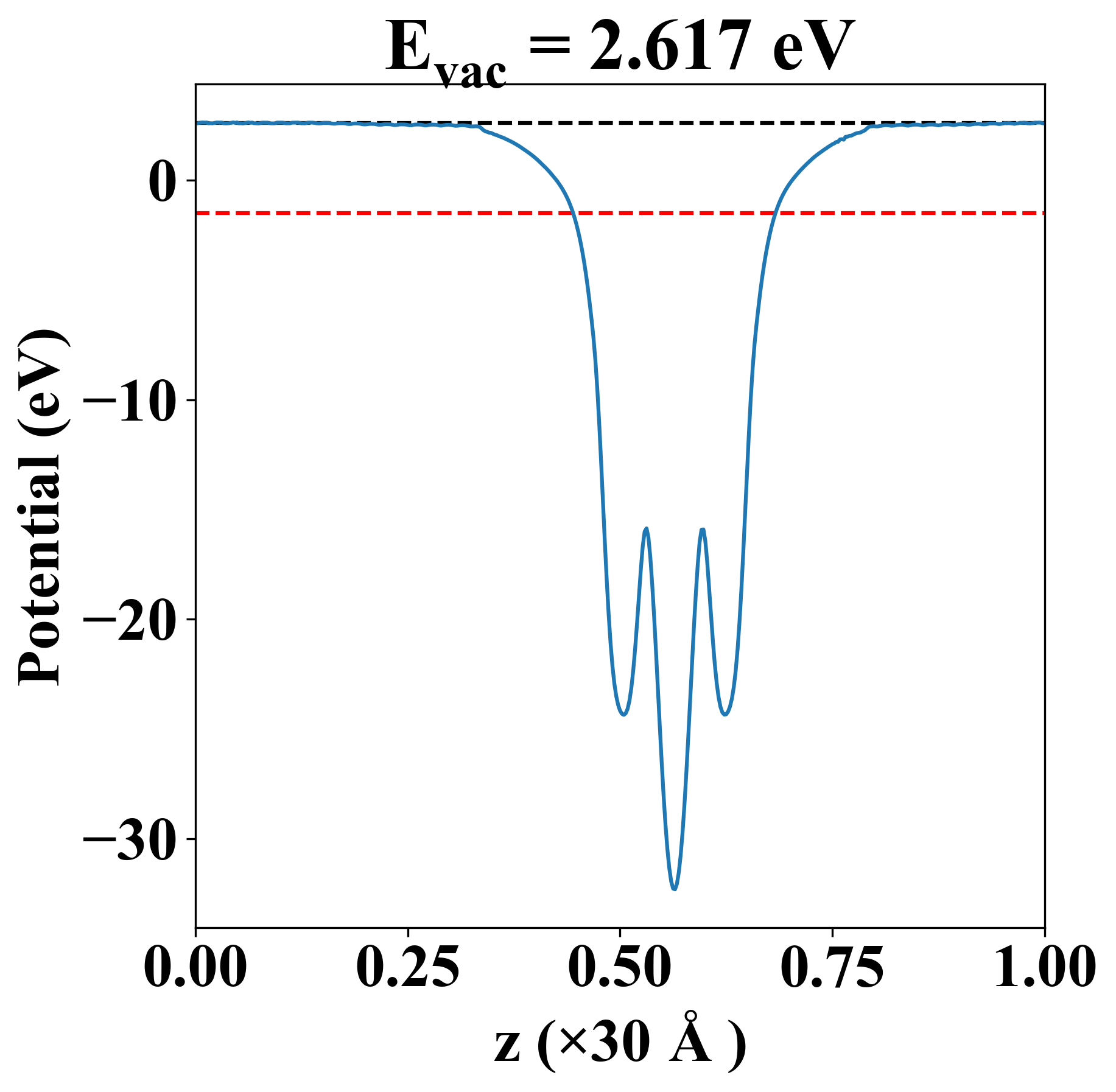

| Vacuum level |
2.617 eV |
| VBM |
-1.480 eV |
| CBM |
-1.479 eV |
| Work function |
4.096 eV |
| Direct gap |
No |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-1.479 eV |
| Vacuum level |
2.617 eV |
| VBM |
-1.480 eV |
| CBM |
-1.479 eV |
| Work function |
4.096 eV |
| Cij (N/m) |
xx |
yy |
xy |
| xx |
69.037 |
27.032 |
-0.000 |
| yy |
27.032 |
69.037 |
-0.000 |
| xy |
-0.000 |
-0.000 |
21.003 |
| Phonon mode at Γ point (THz) |
| -0.002 |
| -0.002 |
| -0.001 |
| 3.679 |
| 3.679 |
| 5.018 |
| 5.676 |
| 5.676 |
| 7.176 |
| Property |
Value |
| from where |
c2db-903 |
